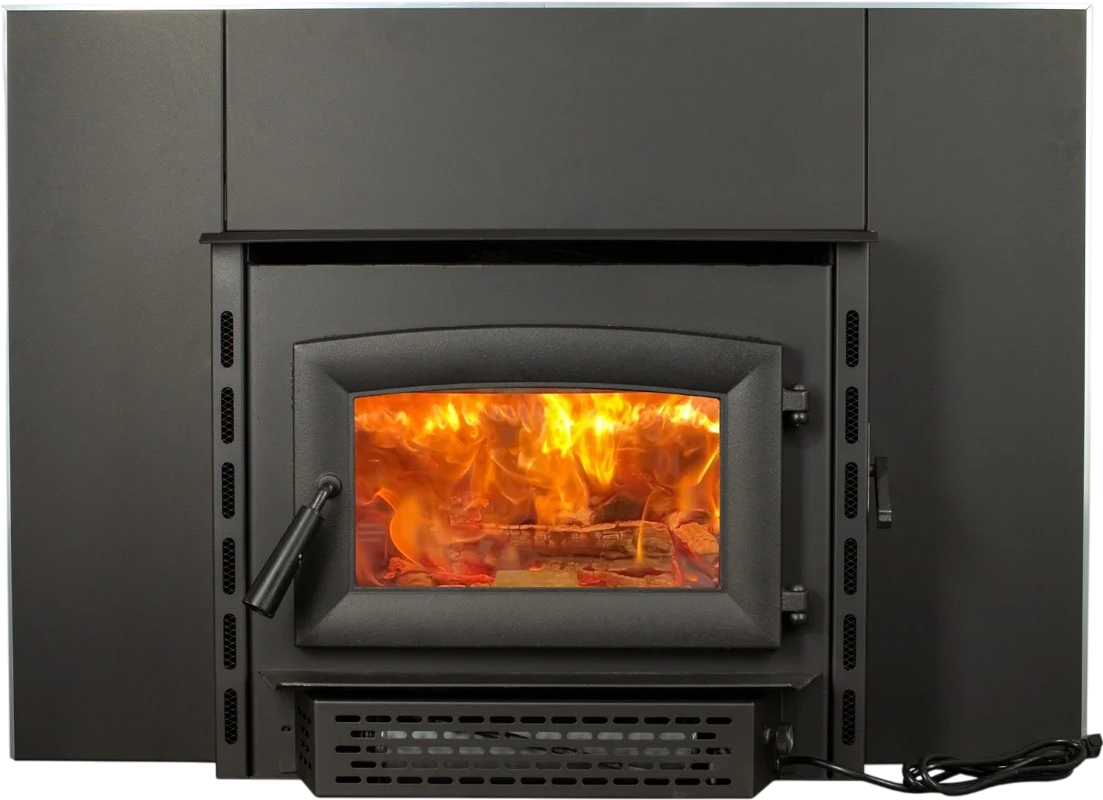

The Ashley Hearth Products AW1820E is an air tight fireplace insert that will greatly improve the efficiency of your fireplace. The AW1820E fireplace insert meets the stringent requirements of the EPA “Step 2” 2020 Certification Guidelines. With a heavy cast iron door with a cool touch wood handle, and an air washed ceramic glass that allows a magnificent view of the burning fire, it will be a beautiful addition to your existing hearth. It comes with the hearth surround to fully enclose the existing fireplace, and is equipped with a spring loaded automatic adjustment to make installation a breeze.
Features

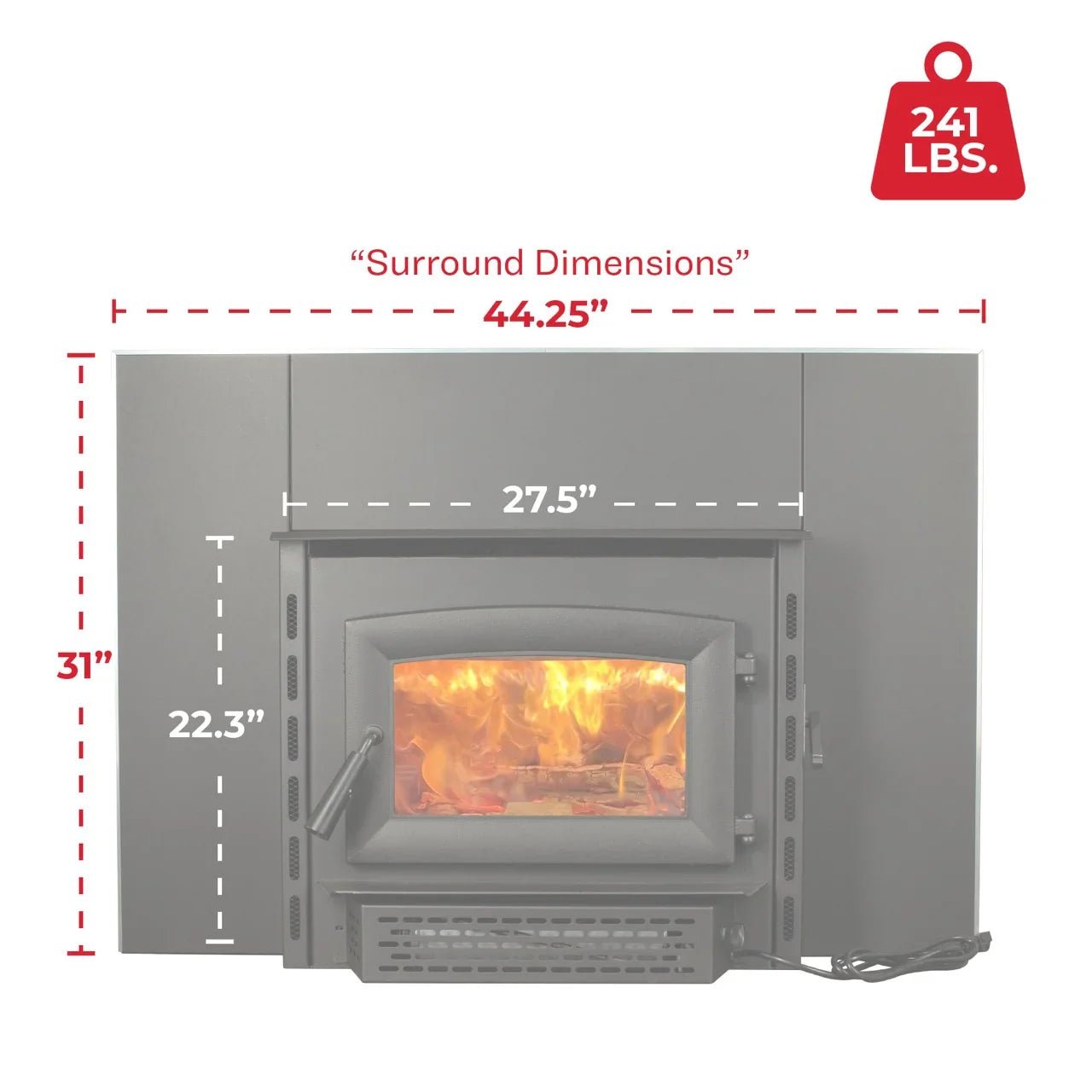

- Large hearth surround – 31 In. x 44 In.
- Over 75% efficient heating
- Accepts logs up to 18″ in length
- Replaces Vogelzang model TR004 and the US Stove Company 2200IE fireplace insert

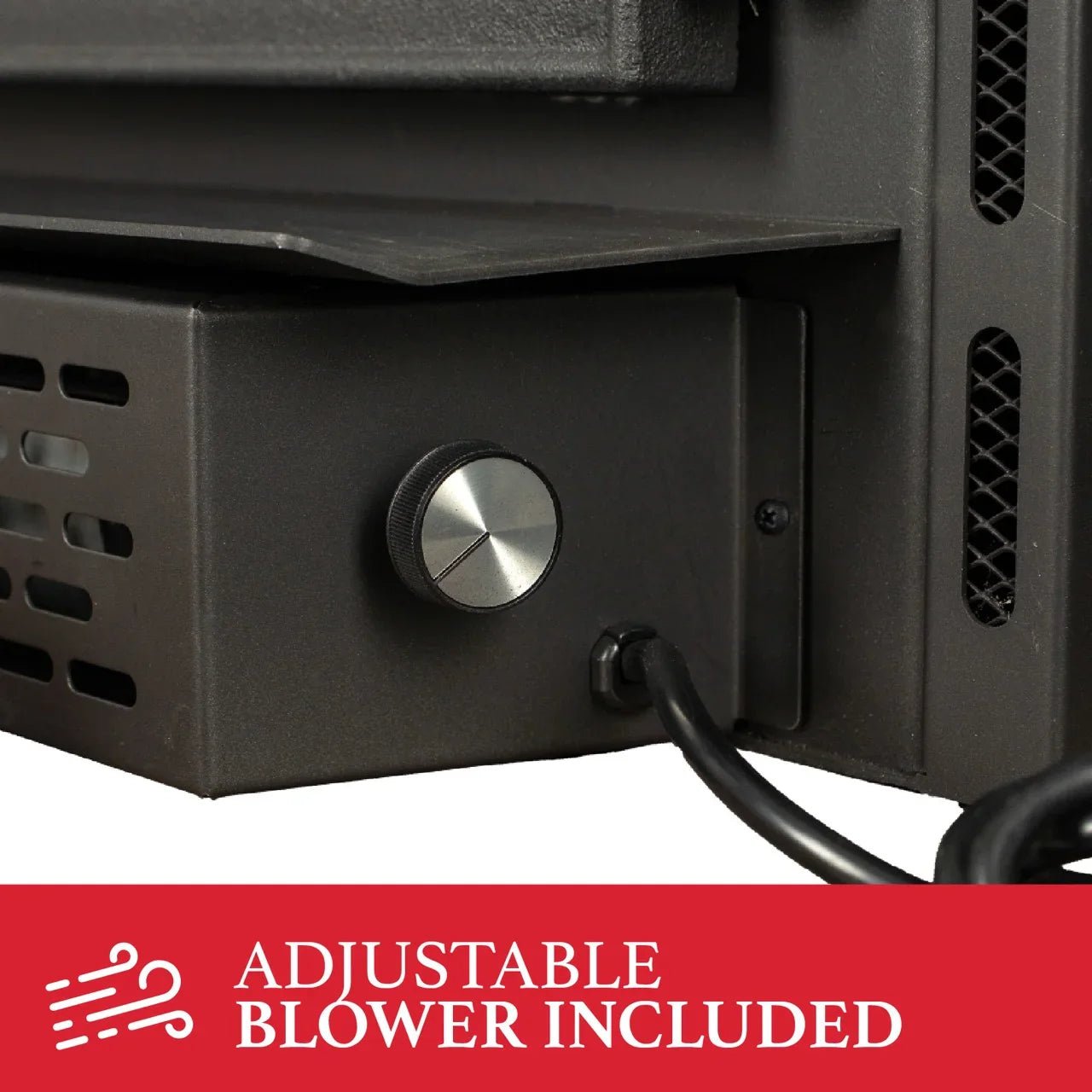

- Adjustable high speed (100 CFM) blower included
- Heavy gauge 3/16″ reinforced plate steel with firebrick lining
- Cast iron feed door with large 16.5″ x 9″ ceramic glass window
- 69,000 BTUs heats up to 1,200 Sq Ft
- Meets all 2020 EPA Guidelines while burning cordwood
Specifications
| Product Material | plate steel |
| Product Manufacturer Warranty | Limited Lifetime firebox warranty, 1 Year all other parts, 1 year Electrical parts |
| Product Firebox Width (in) | 20.25 |
| Product Log Length (in) | 18 |
| Product Cooktop | No |
| Product Vent Location | Rear |
| Product CSA Certified | No |
| Product Stove Type | Insert |
| Product Color / Finish | Metallic black |
| Product Efficiency | 65.5 |
| Product Depth (in) | 20.2 |
| Product Vented Or Vent-Free | Vented |
| Package Weight | 280 |
| Package Width | 35 |
| Package Height | 28.5 |
| Assembled Depth (in) | 20.2 |
| Assembled Width (in) | 27.53 |
| Assembled Height (in) | 22.33 |
| Product EPA Approved | Yes |
| Product Wood Or Pellet Burning | Wood |
| Product Firebox Depth (in) | 10.13 |
| Product Built-In Variable Speed Blower | No |
| Product Maximum BTU | 69000 |
| Product Heating Area (ft²) | 1200 |

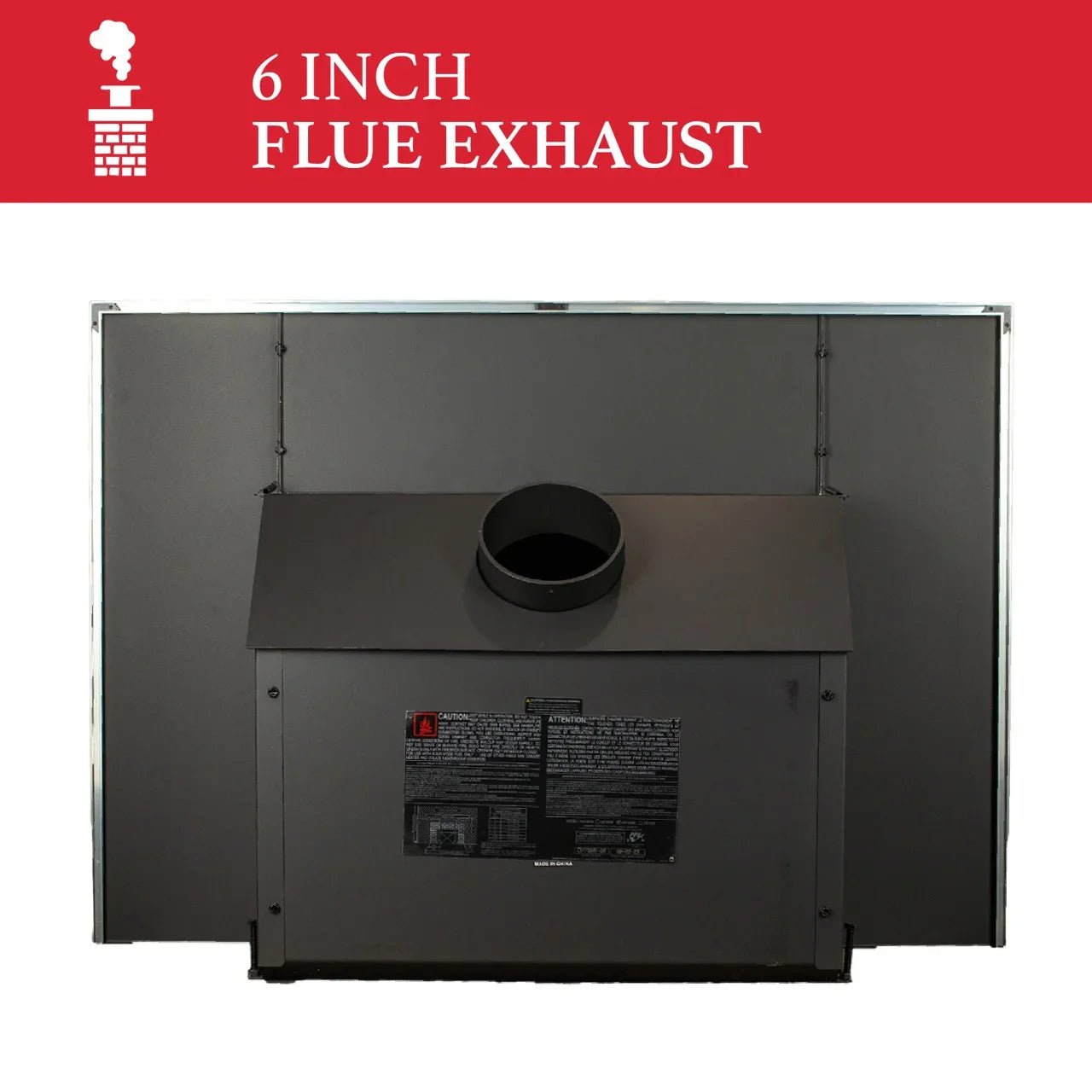

| Product Vent Diameter (in) | 6 |
| Product Installation Method | insert |
| Product Height (in) | 22.33 |
| Product Auto Ignition | No |
| Product Catalytic/Non Catalytic | Non Catalytic |
| Product Air Wash System | Yes |
| Product Blower | Yes |
| Product Pedestal Base Included | No |
| Product Width (in) | 27.53 |
| Product Removable Water Reservoir | No |
| Product Firebox Height (in) | 9.87 |
| Product Outside Air Kit | No |
| Product Ignition System | manual |
| Product Brick-Lined Firebox | Yes |
| Product Package Contents | insert, blower, owner’s manual, warranty sheet |
| Product Venting Required | Yes |
| Product Temperature Gauge | No |
| Product ETL Listed | No |
| Product UL Listed | Yes |
| Product Ash Drawer | No |
Package Contents
Insert
Blower
Owner’s manual
Warranty sheet
